Illawarra Dives Drainage Pump Station
Projects›Case study
Illawarra Dives Drainage Pump Station

Illawarra Dives Drainage Pump Station

Location
Illawarra Junction, NSW
Industry
Water – Municipal
Scope
Design, construction, programming, commissioning
View specifications → Request a quote
The Project

Project overview.

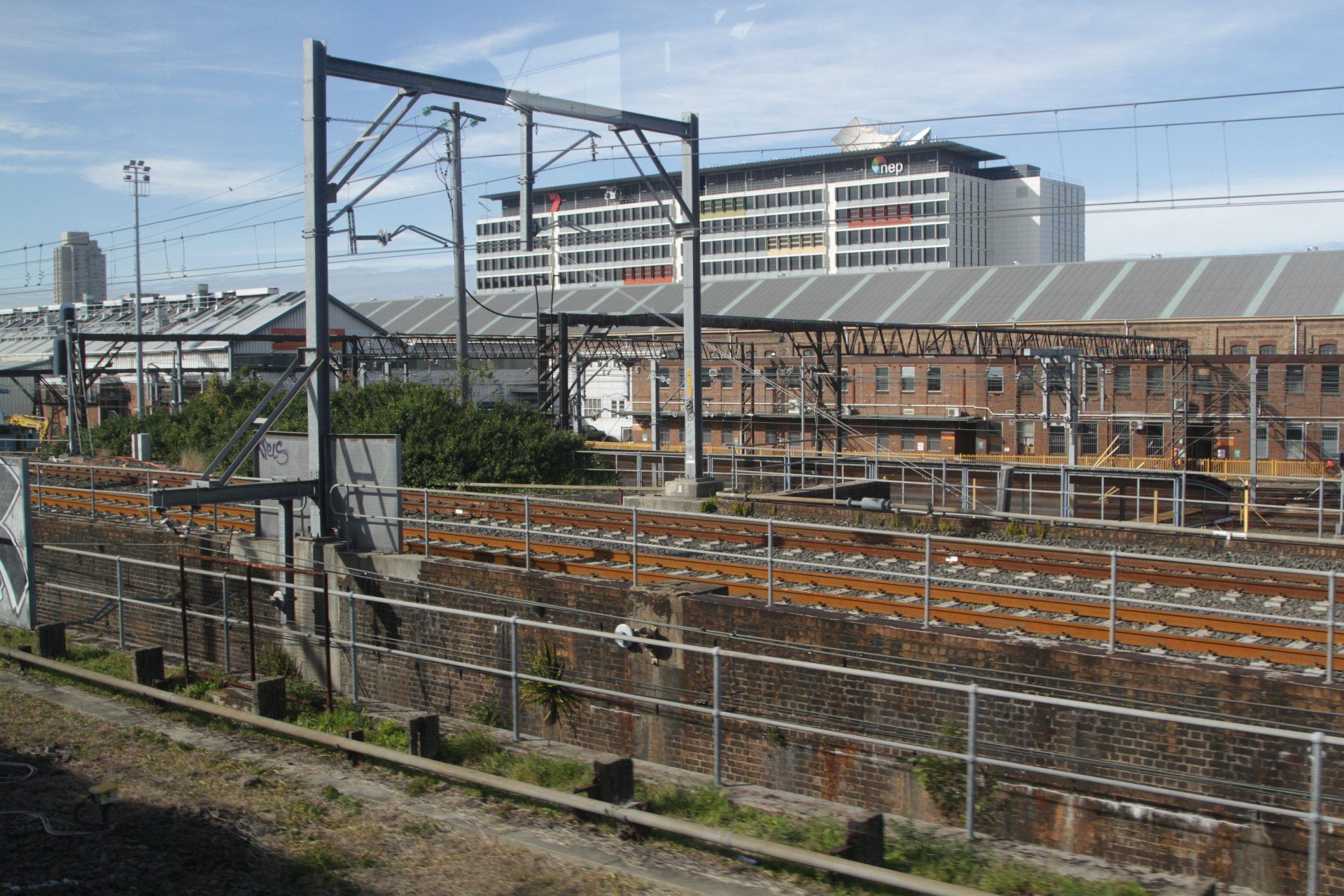

The storm water pump station is located at the launching pit of the underbore, it then prevents flooding within the Illawara Dives.

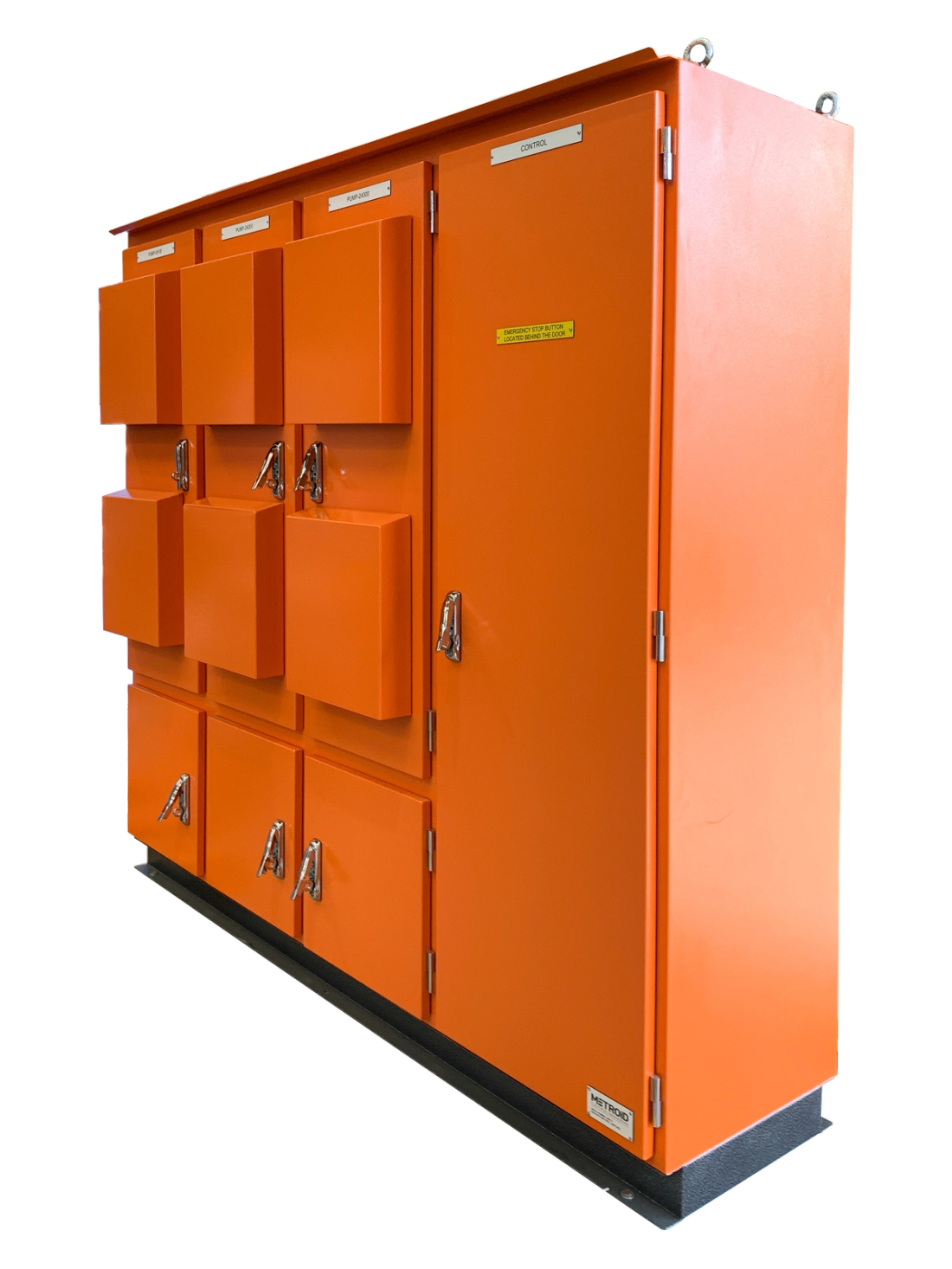

Illawarra Dives Drainage Pump Station - Switchboard
FEATURES & SPECIFICATIONS

Built to spec, built to last.

Board specifications

  • 3 x 22kW pumps on VSD’s
  • ABB ACS580 VSD’s
  • Siemens S7-1200 PLC
  • Weintek 7” HMI
Project Scope

What we delivered.

Electrical fabrication design work
01

Design

Electrical Design →
Switchboards being manufactured in the Metroid workshop
02

Construction

Switchboard Manufacturing →
In-house PLC and control system programming
03

Programming

PLC, SCADA & HMI Programming →
A Metroid technician commissioning an electrical switchboard
04

Commissioning

Commissioning Support →
