Shoalhaven Outdoor CT Metered ATS Panels

Shoalhaven Outdoor CT Metered ATS Panels

Location
Shoalhaven, NSW
Industry
Water – Municipal
Scope
Design, construction
View specifications → Request a quote
The Project

Project overview.

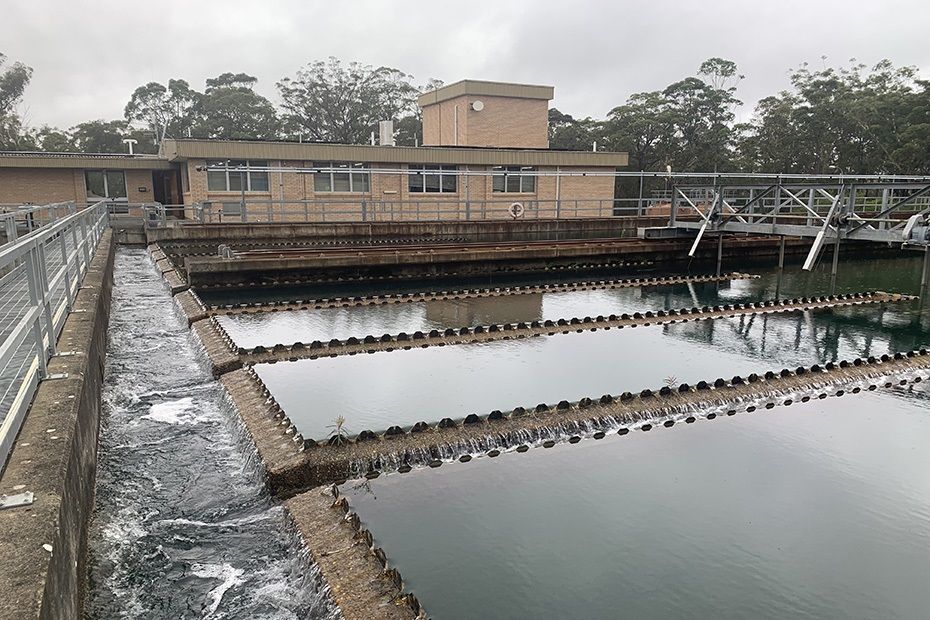

This board is 1 of 4 different ATS panels we manufactured for a Regional NSW Council. One panel is for a water treatment plant that provides drinking water to a regional town in NSW — an AS61439 Type Tested outdoor switchboard that enables us to build outdoor switchboards rated up to IP66 without requiring an outdoor kiosk. Another was for a critical sewage pump station: a 1600A ATS board featuring a Schneider Electric TransferPacT ATS.

Shoalhaven Outdoor CT Metered ATS Panels - Switchboard-1
FEATURES & SPECIFICATIONS

Built to spec, built to last.

Board specifications

  • 2mm 316 stainless steel custom enclosure powdercoated with G54 Green Mist
  • Socomec 800A ATyS Automatic Transfer Switch between mains and generator
  • Panel includes CT metering
  • Schneider TransferPacT Automatic Transfer Switch 1600A
  • 400V
  • 4P
  • KIKBLOX enclosure
Project Scope

What we delivered.

Electrical fabrication design work
01

Design

Electrical Design →
Switchboards being manufactured in the Metroid workshop
02

Construction

Switchboard Manufacturing →
